Mechanical part machining embodies one of CMN Industrie’s core businesses and the basic know-how of our personnel. Thanks to our research department, Sophisticated milling equipment and absolute expertise in the materials we use, CMN produces complex parts to very tight tolerances.
The company owns six 4 and 5 axis milling centers for items up to 30T with maximum capacities of 4300 x 2400 x 1500mm. CMN works with slightly allied carbon steels, CrMo, CrmoV steel alloys, stainless steels, austenoferritic (duplex) steels, super-austenitic steels, refractory steels as well as nickel & cobalt alloys and titanium.
Resources, People and Skills
Constantly evolving to satisfy the need for demanding sectors like nuclear power, cosmetics, pharmaceuticals and agri-business. . . , CMN develops innovative customized solutions. Through its integrated Quality, Security and Environment approach, our corporate mission is to meet the challenges of our customers with one overriding priority – their satisfaction. n annual training program ensures that the technical and technological skills of our staff are state-of-the-art.
Respect, commitment, rigor and proactivity. . . from R&D to production, CMN Industrie people are linked by their enthusiasm and the values they share.
Mechanical engineering and machining: complete and powerful resources
Lathes

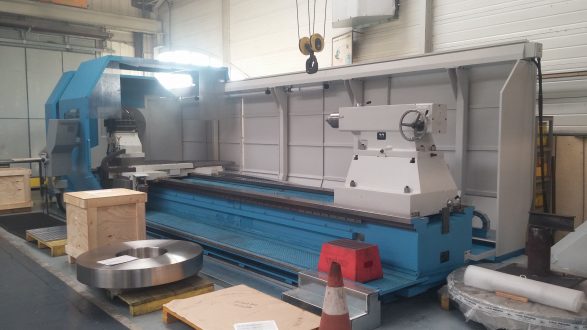

- Horizontal Lathe SOMAB ø1 800 x 6 000 mm

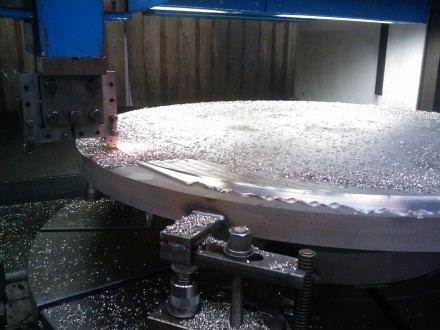

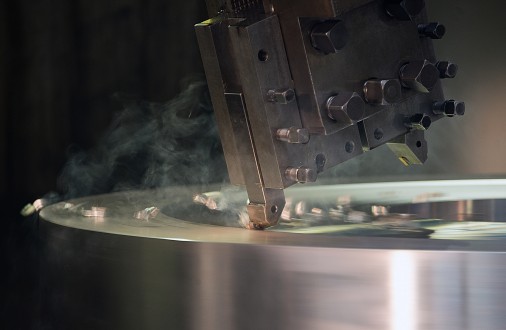

- BERTHIEZ Ø 1 600 height 1 100 mm vertical boring and turning lathe
- NILES Ø 3 000 height 1 500 mm vertical boring and turning lathe
- TOS Ø 1 600 height 1 100 mm vertical boring and turning lathe
- STANKO Ø 1 600 height 1 200 mm vertical boring and turning lathe
- SOMAB 700 2 000 x Ø 700 mm gap lathe (Conventional digital programming)
- SOMAB UNIMAB 550 – Ø 550 x 1 150 mm lathe (Conventional digital programming)

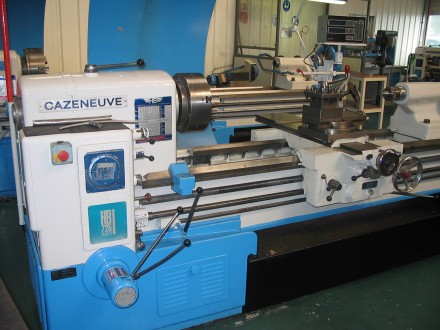

- CAZENEUVE Ø 500 3 000 & 2 000 mm
Milling :
- VERNIER FV 340 – 1030 x 320 x 465 – NUM HEIDENHAIN iTNC530 milling machine
- Bed type NC CORREA – Type A25/30 BT 50 stroke 3000 x 1000 x 1000 with automated 4 position head milling machine – HEIDENHAIN iTNC530 NC conversational control cabinet.
- NC fixed bench NOVAR KBF 800 CNC BT 50 with automated head, stroke 2500 x 800 x 800 – HEIDENHAIN iTNC355 NC conversational control cabinet.
Machining Centers

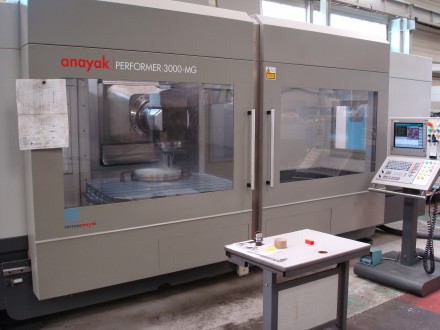

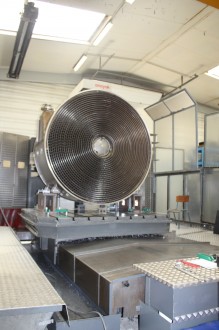

- Bed type ANAYAK (n°1) HVM 3800 – 3200 x 1200 x 2000 – 360,000 positions – 2000 x 2000 Rotary tables – rotary universal Head – positioned W axis – NC HEIDENHAIN iTNC 426.
- Bed type ANAYAK (n°2) – 3800 x 2000 x 1200 – 360,000 positions – 1000 x 1000 Rotary table – rotary universal head – NC HEIDENHAIN iTNC 426
- Bed type ANAYAK (n°3) – 2000 x 700 x 1700 – 360,000 positions – 1250 x 1600 rotary table – universal head – NC HEIDENHAIN iTNC 530

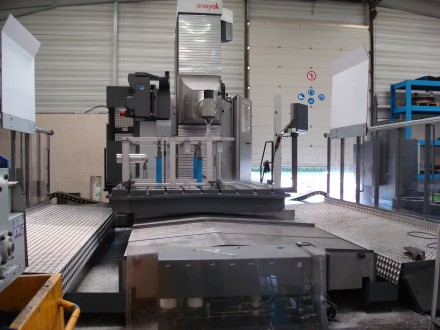

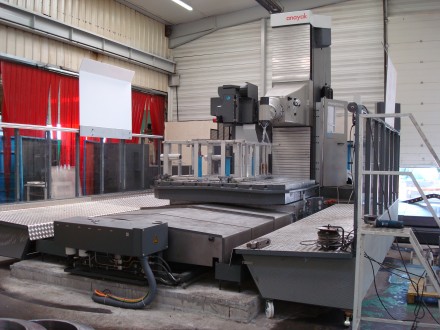

- Bed type ANAYAK (n°4) – 4300 x 1500 x 2330 to 2700 – 360,000 positions – 2500 x 2500 rotary table – Loads; 30T – universal rotary head – positioned C center – HEIDENHAIN iTNC 530
- Bed type ANAYAK (n°5) – 3000 x 1000 x 1100 – 360,000 positions – rotary universal head – positioned B center – HEIDENHAIN iTNC 530
- Bed type ANAYAK (n°6) – 3000 x 1000 x 1100 – 360,000 positions – rotary universal head – positioned B center – HEIDENHAIN iTNC 530
- Center NC KAO MING BT 50 2000 x 1100 x 700 – vertical spindle – 24 tool store NC (FANUC M15 A)
From design through to production, CMN Industrie brings together people sharing the same attitudes and values. Respect, commitment, rigor and proactivity….
Every member of staff is fully involved in corporate relationships with our customers, partners and suppliers.
